Sorter Parts Calculator

3D printed parts

Configure a build to get per-color filament quantities and download the STLs. Filament estimates from OrcaSlicer outputs.

Printer	Bambu Lab A1 · 0.4 mm
Layer height	0.20 mm
Infill	15% adaptive cubic
Supports	Off (per part; stator: normal ≤10°)
Skirt	None
Filament	Bambu PLA Matte @BBL A1 · 1.32 g/cm³

Build options

Colors

Frame

Feeder

Chute core

Funnels

Bins

Layers · 3 layers, bins per layer Print bins — include bins (size/qty per layer below)

Layer 1

bin-third-left

bin-third-center

bin-third-rightback

+

funnel

Layer 2

bin-third-left

bin-third-center

bin-third-rightback

+

funnel

Layer 3

bin-half-left

bin-half-right

+

funnel

81/86 selected ·

Changes and improvements are tracked for some parts. Review what is planned before printing. View 15 changes →

Feeder 2.72 kg

		Part	Each	Total
		Stator Supports Charcoal · 4h 27m total 176 g · support 23 g (included)	176 g × 3	527 g
		Rotor (faceted) 2×Ivory White 1×Ash Gray · 3h 5m	167 g × 3	500 g
		Output gear (130T) Charcoal · 2h 1m	60 g × 3	179 g
		NEMA bracket Charcoal · 2h 0m	72 g × 3	217 g
		Light post Assembly 3 parts · click to expand	3 parts	75 g
		Bulk cap OnShape Charcoal · 12h 10m	620 g × 1	620 g
		Idler gear (24T) Charcoal · 24m	5 g × 4	18 g
		Input gear (12T, screw) Charcoal · 24m	4 g × 4	14 g
		Output guide Charcoal · 1h 1m	21 g × 2	42 g
		Leg Charcoal · 1h 33m	21 g × 9	190 g
		Foot Charcoal · 32m	8 g × 9	76 g
		Leg extension Charcoal · 1h 1m	15 g × 9	139 g
		Overhead camera mount Assembly 4 parts · click to expand	4 parts	121 g

Classification channel 1.00 kg

		Part	Each	Total
		Stator Supports Ash Gray · 4h 27m total 176 g · support 23 g (included)	176 g × 1	176 g
		Output gear (130T) Charcoal · 2h 1m	60 g × 1	60 g
		NEMA bracket Ash Gray · 2h 0m	72 g × 1	72 g
		Classification chamber Assembly 3 parts · click to expand	3 parts	656 g

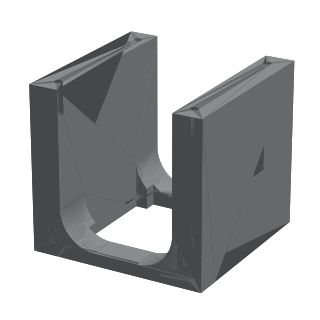

		Camera extension Assembly 2 parts · click to expand	2 parts	36 g

Interface 3.35 kg

		Part	Each	Total
		Interface bracket OnShape Charcoal · 4h 4m	159 g × 6	957 g
		Interface spacer Charcoal · 1h 51m	45 g × 6	270 g
		Frame crossbeam OnShape Charcoal · 2h 39m	86 g × 6	517 g
		Frame 90° bracket OnShape Charcoal · 45m	14 g × 12	163 g
		External distribution-frame bracket Assembly 3 parts · click to expand	3 parts	607 g
		Fixed upper section Assembly 4 parts · click to expand	4 parts	324 g
		Cable clamp Assembly 2 parts · click to expand	2 parts	26 g
		Chute Stepper Gearing Assembly 5 parts · click to expand	5 parts	65 g
		Cable cage Assembly 3 parts · click to expand	3 parts	101 g
		Chute gear Ivory White · 2h 8m	60 g × 1	60 g
		Top interface lazy Susan washer Ivory White · 21m	8 g × 1	8 g
		Top interface chute mount Ivory White · 12h 51m	188 g × 1	188 g
		Chute limit switch Assembly 3 parts · click to expand	3 parts	14 g
		Layer connectors Folder 2 parts · click to expand	2 parts	25 g
		Chute stepper support block Charcoal · 1h 9m	26 g × 1	26 g

Chute × 3 layers 1.29 kg

		Part	Each	Total
		Chute core Ivory White · 6h 34m	214 g × 3	643 g
		Funnel brackets Folder 2 parts · click to expand	2 parts	141 g
		Chute bearing assembly Assembly 3 parts · click to expand	3 parts	108 g
		Servo adapter (MG995) Assembly 2 parts · click to expand	2 parts	30 g
		Servo assembly (MG995) Assembly 4 parts · click to expand	4 parts	124 g
		Chute door Ivory White · 1h 32m	43 g × 3	130 g
		Layer connectors Folder 2 parts · click to expand	2 parts	74 g
		Bearing covers Folder 2 parts · click to expand	2 parts	37 g

Funnels × 3 layers 591 g

		Part	Each	Total
		Funnel (third size) OnShape Ash Gray · 5h 18m	216 g × 2	433 g
		Funnel (half size) OnShape Ash Gray · 3h 60m	158 g × 1	158 g

Distribution frame × 3 layers 4.46 kg

		Part	Each	Total
		Bin retainers Folder 2 parts · click to expand	2 parts	767 g
		Frame crossbeam OnShape Charcoal · 2h 39m	86 g × 18	1.55 kg
		Frame 90° bracket OnShape Charcoal · 45m	14 g × 36	490 g
		External distribution-frame bracket Assembly 4 parts · click to expand	4 parts	1.65 kg

Bottom lazy Susan 639 g

		Part	Each	Total
		Lazy Susan — chute mount Ivory White · 5h 3m	234 g × 1	234 g
		Lazy Susan — bottom static Charcoal · 3h 60m	207 g × 1	207 g
		Lazy Susan extrusion mounts Folder 2 parts · click to expand	2 parts	188 g
		Lazy Susan — washer Charcoal · 24m	11 g × 1	11 g

Printed Bins × 3 layers 0 g

		Part	Each	Total
		Printed Bins Folder 5 parts · click to expand	5 parts	0 g

Electronics 218 g

		Part	Each	Total
		Meanwell 24V PSU box Assembly 3 parts · click to expand	3 parts	218 g
		Orange Pi 5 Housing Assembly Coming soon Parts and print details coming soon	—	—
		basically Embedded Control Board Housing Assembly Coming soon Parts and print details coming soon	—	—

What to order

Extra filament

%

Buffer for incidental parts & failed prints.

Color	Spools	Cost
Charcoal 11.91 kg	12	$203.88
Ivory White 3.29 kg	4	$67.96
Ash Gray 1.20 kg	2	$33.98
Total · 16.40 kg	18	$305.82

Uses Bambu Lab bulk pricing ↗ (PLA Matte, w/ spool): $24.99 ea, $17.99 at 4+, $16.99 at 6+. You're at $16.99/spool (18 rolls).

Total print time

21d 14h

1 printer · 1 part/plate

Download all (86)

A machine = 1 feeder + 1 classification channel + 1 interface + 1 chute + 1 lazy Susan + N × (distribution frame + bins + funnels). Distribution frame, bins and funnels are per layer. Grams from OrcaSlicer; regenerate with slicer/filament.py.
